Self-tensioning Multifunctional Screen Printing Mesh Stretcher

006267----SPE-KJ6060 Fast Self - stretching Screen Frame Type Multi - functional Stretcher

SPE6252 micro-adjust one color screen printing machine(006015)

The printing area is 62*52cm, it is mainly used in printing some products within 60*50cm ,such as advertising board,cloth sheet ,iron box and paper box and so on.

The functions and features:

1. Width of the screen frame chuck is 37cm, it is suitable for screen frames within outer size 70cm.

2. According to the height of the substrate ,chuck of the screen frame can adjust 11cm from top to bottom;

3.There are micro-adjust knobs , the pallet can be micro adjust 2cm,from top to bottom,from left to right.

4.The balance of the screen frame adopts heavy metal sliding balance sheet; According to the weight of the screen frame to adjust the balance of the sheet and the screen frame.

5.When two sets machines used at the same time,change the suitable pallet , it can print products that size is 60*150cm.

6.This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .

This stretcher can be used for aluminum alloy screen frame, wooden frame and iron frame.

The maximum size screen frame can be stretched is outer size 60 cm , the maximum tension can be up to 18N. It is suitable for 90% screen plate tension.The quality of the stretched frame is similar to the traditional rubber tension stretcher.

Quick and simple operation:

1，Install the base: install the base stand screw on the base; Install the clamp part and handle on the stand screw; Connect the two bases with a connecting plate; The two connected bases are placed crosswise; (note the direction of the concave buckle of the four connecting strips)

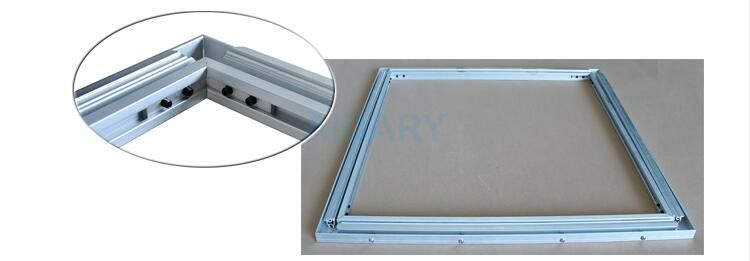

2，Install the stretching screen frame, first connect the four frame bars with corner parts and tighten;

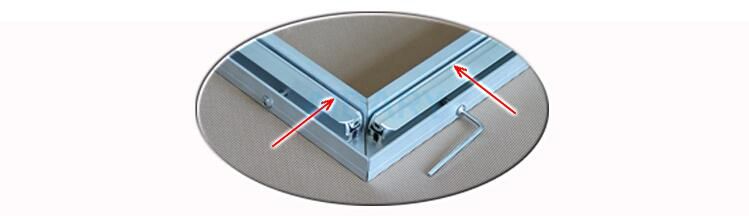

3，Loosen the concave bars and push them inwards;

4，Open the buckle,put the mesh into one side, try to tighten the mesh, put the mesh into the other side of the groove;

5，Use hexagon socket wrench to tighten all around, to achieve the required tension, wait for use;

6，Coating glue on the screen frame for the first time to achieve the degree of non-stick hand,then put into the frame base;

7，As for screen frame with thickness less than 30mm,place the screen frame with mesh side down into the stretcher.
As for screen frame with thickness more than 30mm,place the screen frame with mesh side up into the stretcher .

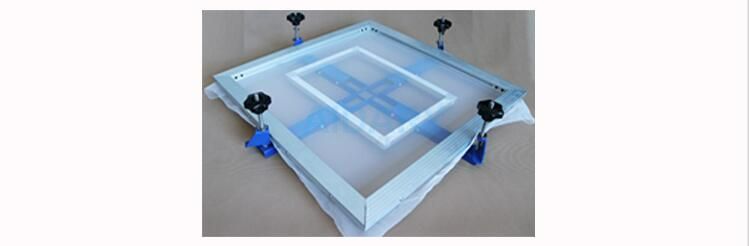

8，Press the screen frame with the clamp part, rotate the handle to increase the pressure ,and the screen frame with mesh will close - fitting combination further increases tension

9，The second time coating mesh glue (wooden screen frame can be fixed with nail gun );

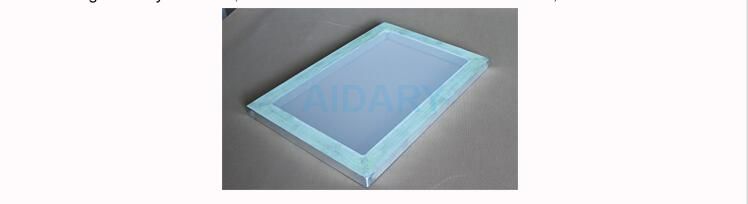

10， After the glue is dry and solid, cut the mesh from the outside of the frame, take down the frame.

Convenient transportation and storage

When the machine is not in use, it can be completely disassembled and stored for safe keeping without occupying space. The packing size is 75*13*13 cm (0.013 m3), the net weight is 7 kg, the gross weight is 7.7 kg, the transportation cost is lower.

The stretching frame is made of special aluminum alloy material and the surface is oxidized. The base is made of 3mm thick steel plate with advanced electrostatic spraying. It is resistant to moisture, scrubbing, acid and alkali, corrosion and long-term use without rust.

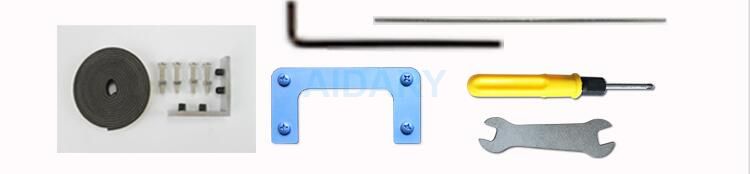

Equipped with a full set of installation tools and detailed installation instructions; Easy installation without additional tools.

Equipped with spare parts.

Export to Europe and the United States standard carton packaging, all kinds of metal parts in the box are individually packed or placed in isolation, to ensure that all kinds of metal parts do not directly contact;
