AIDARY One Color Screen Printing Machine 006205-5

006205---SPE-11TM One Color Screen Printing Machine

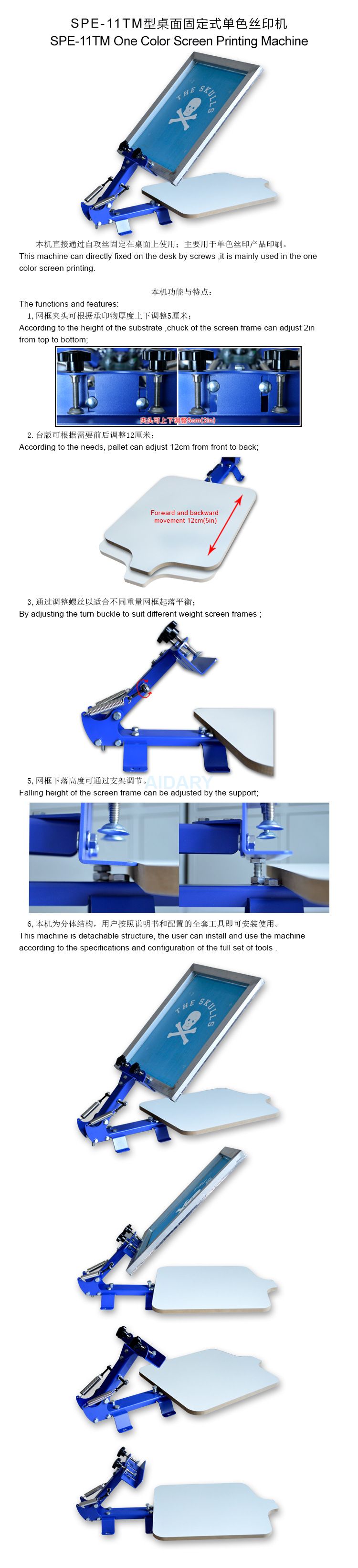

 1. This machine can directly fixed on the desk by screws ,it is mainly used in the one color screen printing.

 2,  the functions and features:

 1) According to the height of the substrate ,chuck of the screen frame can adjust 5cm from top to bottom;

 2) According to the needs, pallet can adjust 12cm from front to back;

 3) by adjusting the turn buckle to suit different weight screen frames ;

4) Falling height of the screen frame can be adjusted by the support;

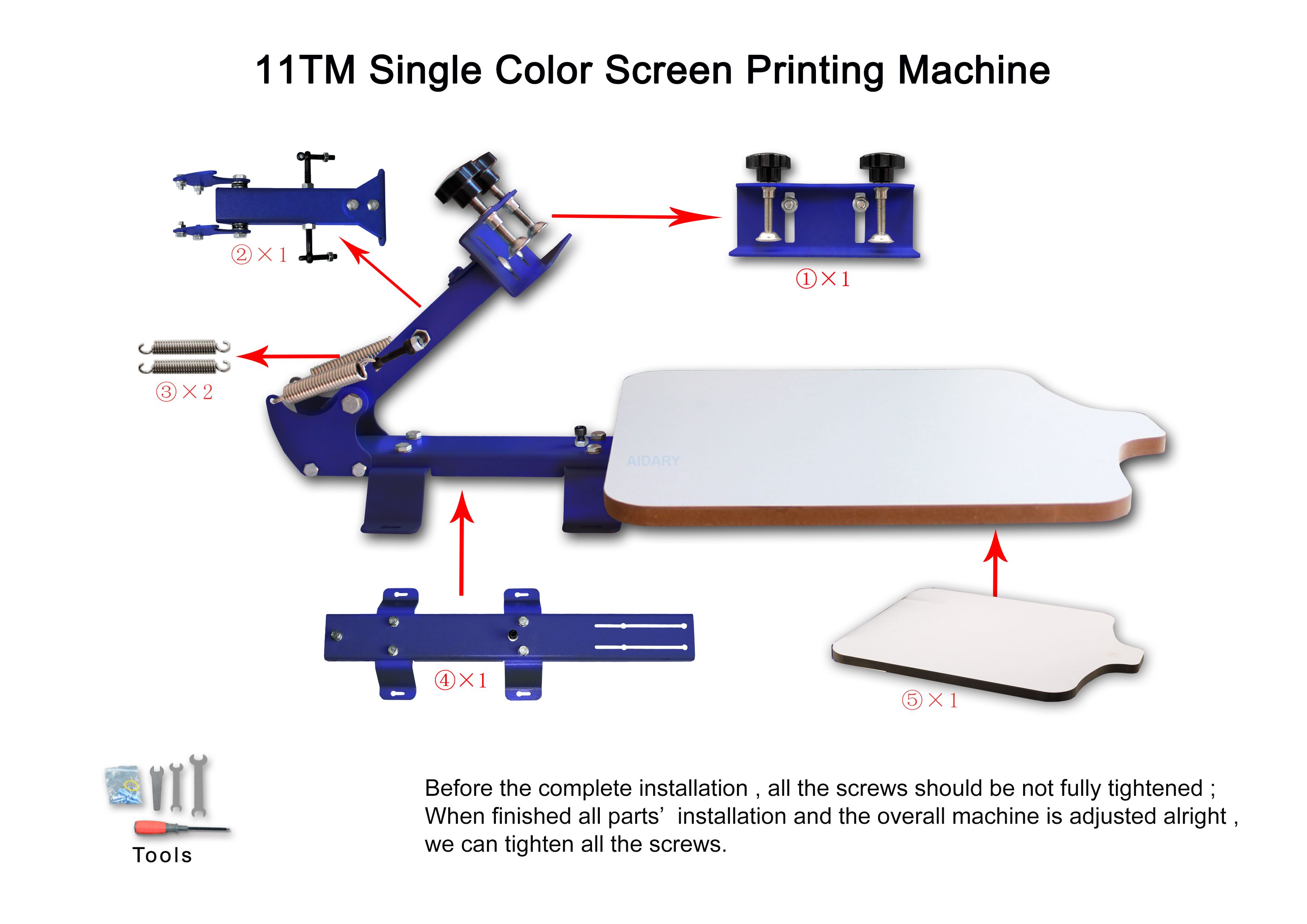

5）This machine is detachable structure, the user can install and use the machine according to the specifications and configuration of the full set of tools .

Before the complete installation , all the screws should be not fully tightened ; When finished all parts’  installation and the overall machine is adjusted alright ,we can tighten all the screws.
