1.About printer
The main parts on the machine is printer head and mainboard,

1. Mainboard: hoson is the occupate 75% in the market,and the next is Sen yang which is high cost performance.If your budget is limited we suggest you to choose this.
2. Printer head: the most stable one is EPSON I3200 but it is expensive, and the cheap model is XP600.The most accompany is Hoson mainboard+Epson I3200.

There are different amount on printer head.There are 2heads,4heads and 8head.The more heads is more printer faster and more high quality printing.
2Heads: 1head for colorful inks, 1head for white inks
4Heads: 2heads for colorful inks,2head for white inks
8Heads: 4heads for colorful inks,4head for white inks

2.Hot melt powder
(1) Melting range (melting point): 115-130 ℃
(2) Ingredients: TPU (polyurethane)
(3) Washing resistance grade (GB 5 is the best): 40 ℃ water washing grade 4, 60 ℃ water washing grade 4, dry cleaning and drying grade 4
(4) Pressing condition: Time: 8-15 seconds Temperature: 120-165 Pressure: 2-4KG
(5) Anti-static, anti-oil, good elasticity, tensile resistance, strong washing fastness, normal drying without cracking (for washing machine with drying function)

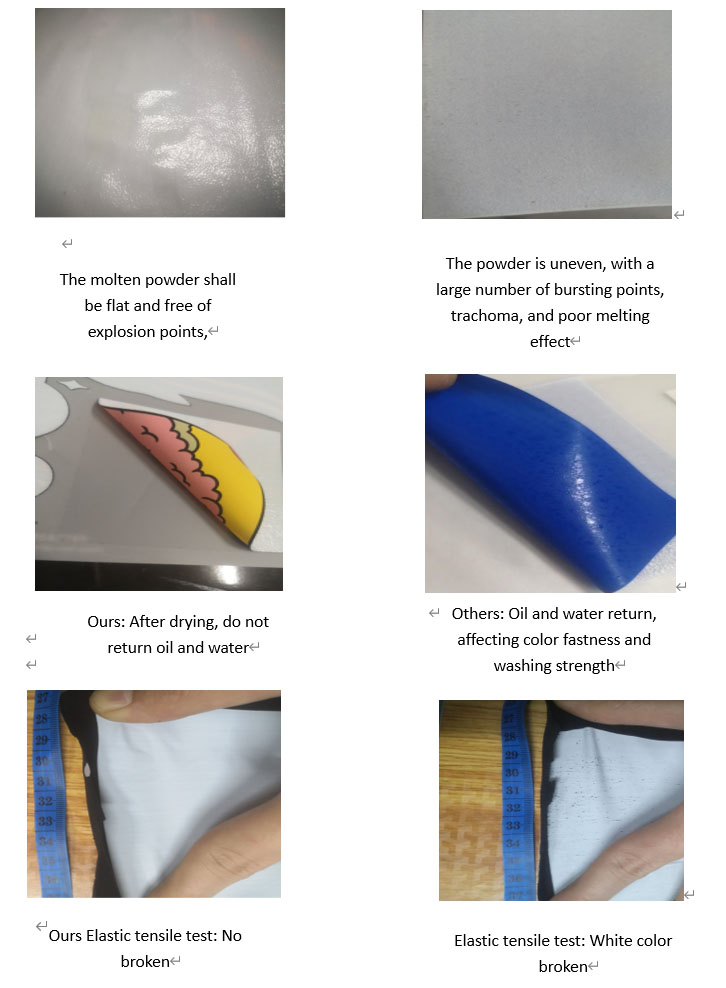

Comparison Chart

3.About ink:
the main raw materials are resin (waterborne polyurethane), titanium dioxide, and other additives

At present, as the main raw material of white ink, resin is the W-6110 resin produced by Mitsui in Japan. This white ink is the best and most stable resin currently used. Enterprises such as Ink Bank and Tianwei still choose W-6110 as the raw material in resin selection. This is also the fundamental reason for the high cost of white ink. In terms of performance, 6110 has an effect that other resins can't achieve, no matter in elasticity, coverage and whiteness. At present, white ink is also being localized. Compared with imported resin, there will also be a big gap in cost, but there is still a big difference in performance with imported resin. At present, Chinese ink factories still mainly rely on imported resin, but some factories will use domestic or even reduce the resin content of ink (the normal resin content of 1L ink cannot be less than 20%) to control the production cost, thus reducing the sales price of ink, But the performance and stability will be greatly reduced!

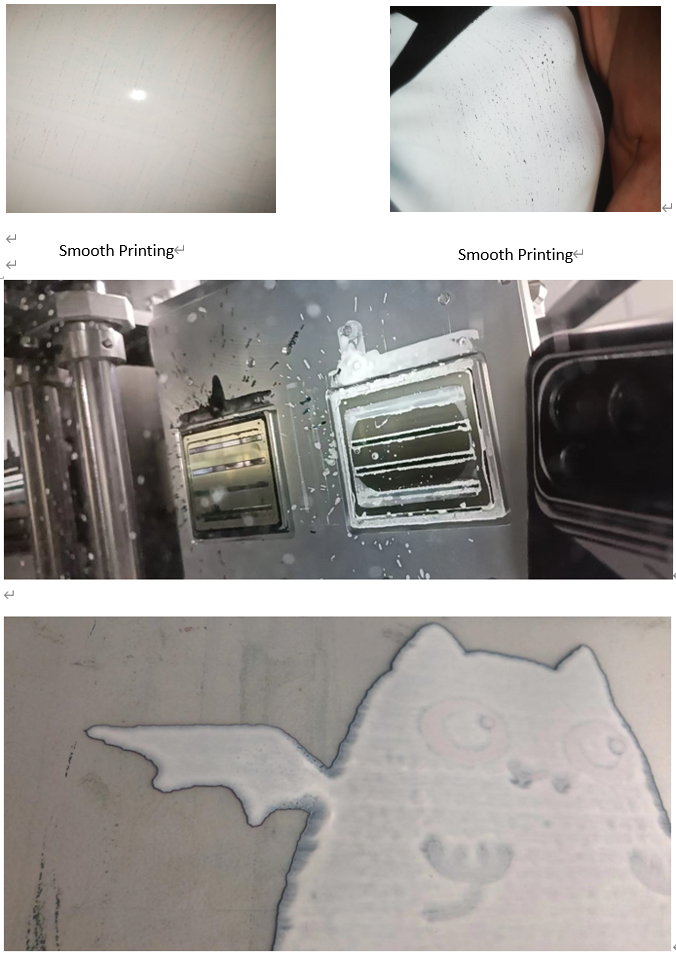

Rendering of domestic ink

4.PET film

(1) The bottom film is a kind of polymer material, referred to as PET film

(2) At present, there are mainly two kinds of films on the market: one is oily film, the other is water-based film (generally speaking, it is not recommended to tell the customer what kind of printing film it is, because the solvent is added to the oily film, which may have environmental requirements in some foreign regions)

(3) On the basis of water-based and oil-based films, different coating processes are derived, namely, three-in-one coating, water-based coating and oil-based coating.

(4) In the sense of perception, the pattern picture can be divided into:; Matte, bright, single-sided and double-sided (mostly matte in the market)

(5) Oily coating film: this film is a relatively mature product for DTP, and is also a mainstream product in the market. However, due to the complex coating process and relatively high cost, the normal coating needs to be repeated for more than 4 times, but the coating is stable and will not be affected by the weather, temperature and humidity, or there is poor separation, powder rising, etc

(6) Water-based film: The coating materials used are water-based and soluble in water, so they are relatively environmentally friendly. However, the coating formula is unstable and is greatly affected by environmental factors. There are often problems such as powder swelling, water edge, inability to tear, poor washing fastness, poor ink absorption, etc

(7) Three-in-one film: the process derived from the above two processes is to mix all the coatings together for coating, which will be lower in cost than the above two coating processes, but it is extremely unstable, because it is difficult to ensure the smoothness of the coating when all the coatings are mixed together for coating, mainly resulting in problems such as coating loss, poor color fastness, ink flow, etc. At present, there is no good film factory in China

NTT-2000 Intelligent Digital Display Temperature Controller.pdf

Sublimation Process huteng.pdf

Shipping cost for one box flat bottom 20oz tumblers 50pcs (19kgs):
-Cost for tumbler: 2.9*50=$145
-Sea freight door to door to Western United States  by CLX : 51usd(zip code beginning from 8.9)     22-25days
-Sea freight door to door to Middle United States  by CLX : 53usd(zip code beginning from 4.5.6.7)     22-25days
-Sea freight door to door to East United States  by CLX : 56usd(zip code beginning from 0.1.2.3)     22-25days

If you have any inquiry please feel free to contact with us at :  info@heatpresscn.com

Manual for Yel-2001 NTTE-2000(N)english.doc

Capacity	Size	Element Height	Element Perimeter (inner)杯垫内径	Element Perimeter (outter)杯垫外径	Mug Height	Mug Diameter
3oz	80*152mm	80mm	152mm	20cm	75mm	4.8-8.2cm
8oz	115*190mm	115mm	190mm	25cm	110mm	6-7.8cm
11oz	120*235mm	120mm	235mm	28.5cm	115mm	7.5-9.0cm
15oz	150*250mm	150mm	250mm	31cm	145mm	7.9-9.8cm
20oz ceramic	135x260mm	135mm	25cm	31cm	130mm	7.9-9.8cm
20oz tumbler	220*215mm	220mm	215mm	26cm	215mm	6.8--8.7cm
30oz tumbler	270*215mm	270mm	215mm	32cm	265mm	7.5-9.0cm
12oz cone	φ90xφ62xh100mm	100mm	φ90xφ62	φ90xφ62	95mm	12oz cone mug
17oz cone	φ88xφ60xh150mm	150mm	φ88xφ60	φ88xφ60	145mm	17oz cone mug

发热板电器参数 heat platen Parameter
发热板尺寸（cm）	电压(V)	电阻(Ω)	电流(A)	功率(W)
6*12实心	110V	36.5	3	300
	220V	142	2	350
12×12弯头	110V	40	3	300
	220V	80	1.5	350
12*12实心	110V	40	3	300
	220V	135	2	350
15*20实心	110V	20	6	600
	220V	60	3	800
23×30	110V	20	5.5	600
	220V	60	3.2	800
29*38	110V	10	11	1200
	220V	38	6	1300
38×38	110V	8.5	13	1500
	220V	33.5	.7	1500
40×50（横向）	110V	6.5	16	1800
	220V	22	10	2200
40×60	110V	6	18	1800
	220V	21	10.5	2300
50×70	110V	5	23	2500
	220V	16	14	3000
60*80	110V	4	27	3000
	220V	14	16	3500
30*100	110V	6	18	2000
	220V	16	14	3000
80×100手动板	220V	7.5	30	6500
80×100气动板	220V	5.8	36	8000
75×105	220V	6	36	8000
十工位笔机	110V	38	3	300
	220V	130	2	350
杯垫120*235	110V	40	3	300
	220V	161	2	350
杯垫220*215	110V	30	4	400
	220V	121	2	400
杯垫270*235	110V	24	4.5	500
	220V	97	2	500
10×17(大帽垫)	110V	21	5.5	600
	220V	77	3	600
8×14(小帽垫)	110V	35	3	350
	220V	137	1.5	350

The Seaport of the World.pdf

Usage of Sublimation Coating

Introduction:
You could spray directly, scrub, immerse or pour the coating on the surface of products, wait unit the coating to be dry(no longer flowing).Then put products in 200°C oven to heat about 20 minutes.(If 180°C for 30minutes).
1KG coating could spray 8 square meter products(about 300pcs sublimation mug)
It could be used on wood, metal, stone .glass ,ect, which could bear 200°C high temp with 20minutes.

Solution
If you find the product’s surface become yellow, just because the heating time is too long or temp is too high. If the paper stick on the surface when you transfer, then the heating time should be shorter.

Usage

1. You must clean the surface of products first.
2. Then turn on the oven to heat up ceramic materials (such as mugs or plates) to 30-40degree.don’t be too hot. And then take out ceramic materials . this step is just for avoiding dust on mugs or plates before coating . (metal & glass &wood material doesn’t need this step.)
3. Then spray or pour coating on the products, when the coating spray evenly on the product’s surface, then take out and wait for drying. When there have no coating flowing off, then put them into oven to heat about 200°C oven, 20 minutes.
4. When reaching the time, take out the products. That is ready for coating step.
