HE3OZ
AIDARY
Key words | 3oz Small Size Mug Heating Element | |||||
Voltage | 110V /220V | |||||
Plug | Male /Female | |||||
Temp Arrange | 0-300C | |||||
Capacity | Size | Element Height | Element Perimeter(inner) | Element Perimeter(outter) | Mug Height | Mug Diameter |
3oz | 80*152mm | 80mm | 152mm | 20cm | 75mm | 4.8-8.2cm |
8oz | 115*190mm | 115mm | 190mm | 25cm | 110mm | 6-7.8cm |
11oz | 120*235mm | 120mm | 235mm | 28.5cm | 115mm | 7.5-9.0cm |
15oz | 150*250mm | 150mm | 250mm | 31cm | 145mm | 7.9-9.8cm |
20oz ceramic | 135x260mm | 135mm | 25cm | 31cm | 130mm | 7.9-9.8cm |
20oz tumbler | 220*215mm | 220mm | 215mm | 26cm | 215mm | 6.8--8.7cm |
30oz tumbler | 270*215mm | 270mm | 215mm | 32cm | 265mm | 7.5-9.0cm |
12oz cone | φ90xφ62xh100mm | 100mm | φ90xφ62 | φ90xφ62 | 95mm | 12oz cone mug |
17oz cone | φ88xφ60xh150mm | 150mm | φ88xφ60 | φ88xφ60 | 145mm | 17oz cone mug |
How to order the mug heating element?
Give us the size of the element you need;
Confirm the voltage;
Confirm the plug(see the pictures below);
Confirm the hole distance(see the pictures below);
Also confirm if the controller is K type sensor;
Our default distance is 2 holes and 2 folds at 8cm distance(see the pictures below)

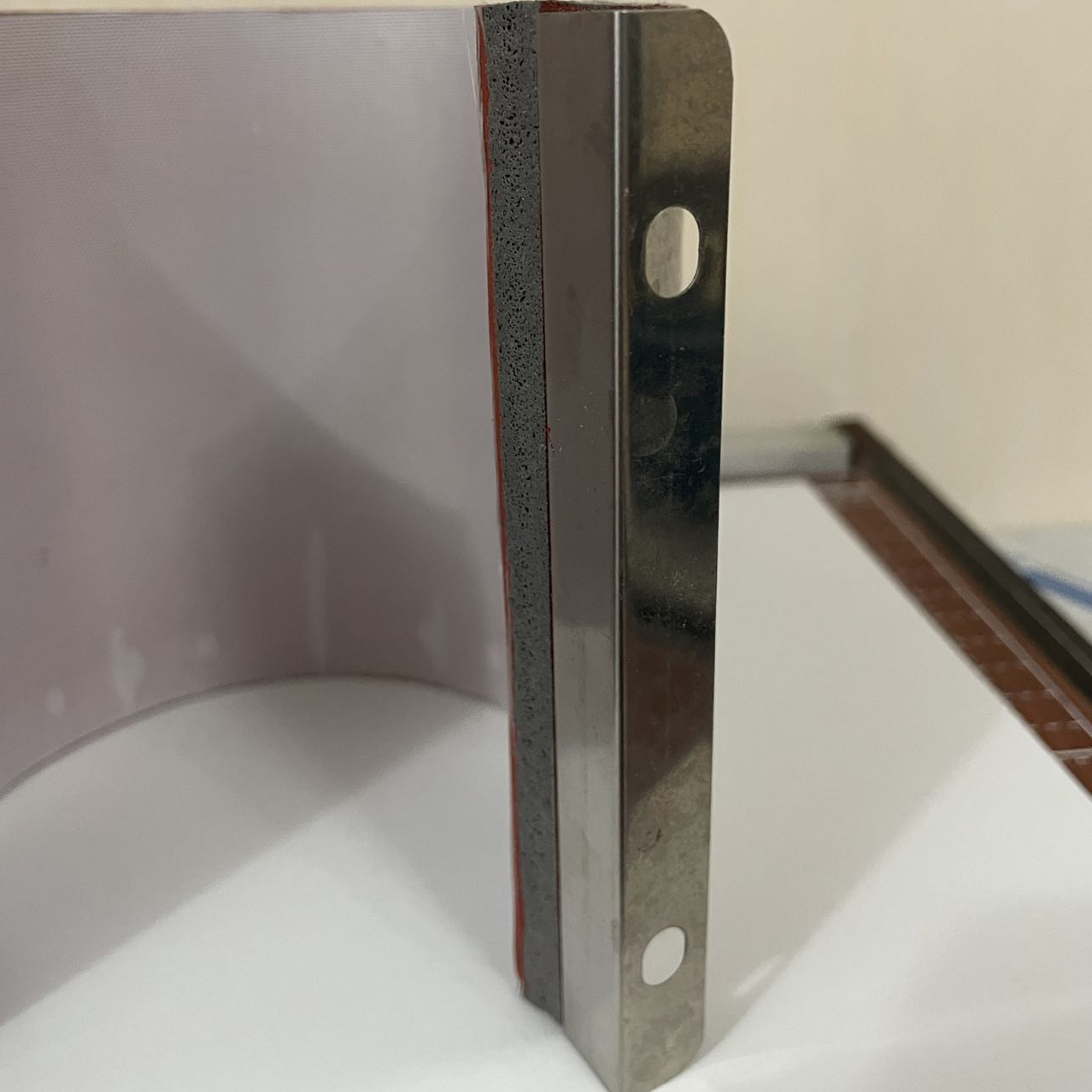

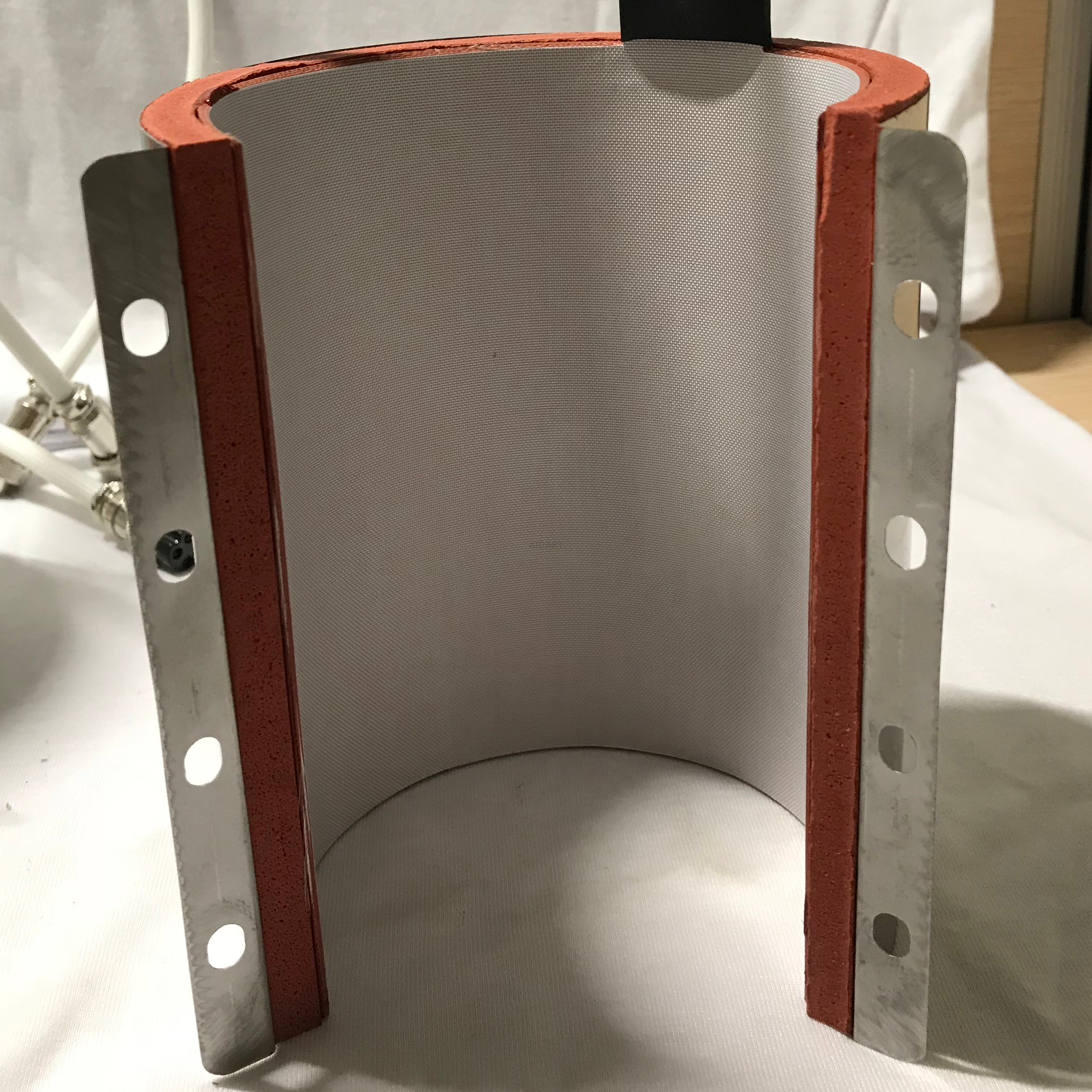

Two types of heating element edge
Key words | 3oz Small Size Mug Heating Element | |||||
Voltage | 110V /220V | |||||
Plug | Male /Female | |||||
Temp Arrange | 0-300C | |||||
Capacity | Size | Element Height | Element Perimeter(inner) | Element Perimeter(outter) | Mug Height | Mug Diameter |
3oz | 80*152mm | 80mm | 152mm | 20cm | 75mm | 4.8-8.2cm |
8oz | 115*190mm | 115mm | 190mm | 25cm | 110mm | 6-7.8cm |
11oz | 120*235mm | 120mm | 235mm | 28.5cm | 115mm | 7.5-9.0cm |
15oz | 150*250mm | 150mm | 250mm | 31cm | 145mm | 7.9-9.8cm |
20oz ceramic | 135x260mm | 135mm | 25cm | 31cm | 130mm | 7.9-9.8cm |
20oz tumbler | 220*215mm | 220mm | 215mm | 26cm | 215mm | 6.8--8.7cm |
30oz tumbler | 270*215mm | 270mm | 215mm | 32cm | 265mm | 7.5-9.0cm |
12oz cone | φ90xφ62xh100mm | 100mm | φ90xφ62 | φ90xφ62 | 95mm | 12oz cone mug |
17oz cone | φ88xφ60xh150mm | 150mm | φ88xφ60 | φ88xφ60 | 145mm | 17oz cone mug |
How to order the mug heating element?
Give us the size of the element you need;
Confirm the voltage;
Confirm the plug(see the pictures below);
Confirm the hole distance(see the pictures below);
Also confirm if the controller is K type sensor;
Our default distance is 2 holes and 2 folds at 8cm distance(see the pictures below)
Two types of heating element edge
