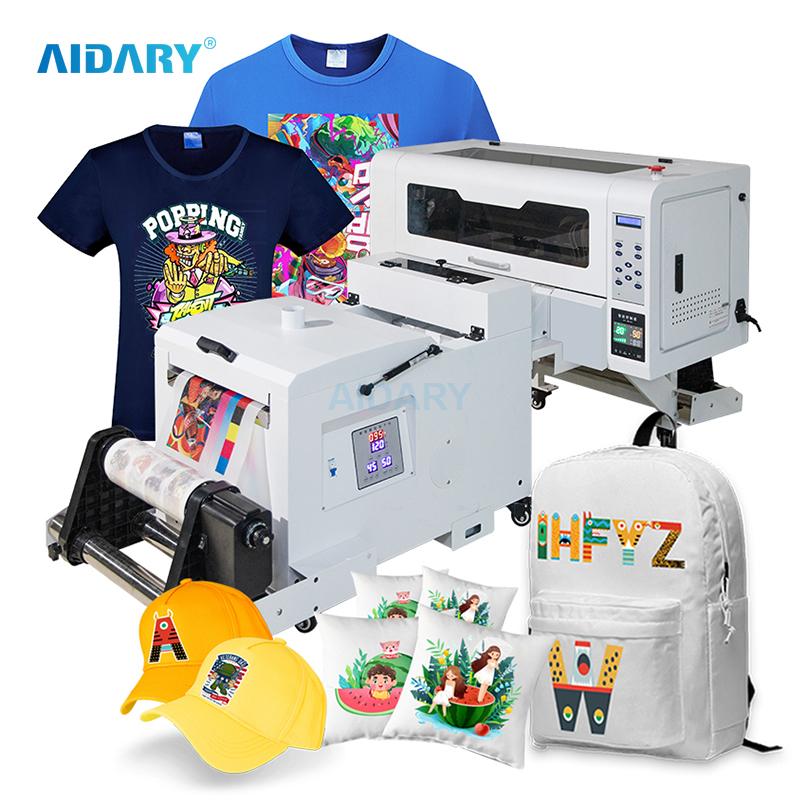

400mm Width Hoson Mainboard PET Film Printer DTG Printing Machine

1. Price include Maintop 6.1 software
2. Voltage: 220V/110V; Power:1000W;CN/US/EU plug OK, others needchange-over plug
3. Print speed:
 XP600: 4-5/m/H
 3200: 10-15/m/H
4. Packed in plywood box5. Recommend Sen Yang with XP600 head Hoson with I3200 head
Power:
Voltage:
Head Number:
Width :
Speed:
SKU:
Availability:
Quantity:
  • A2-3200

  • AIDARY

  • 84433990


Keywords 400mm Width Hoson Mainboard PET Film Printer DTG Printing Machine
Vlotage 110V/220V
Mainboard Hoson board
Printer Head Epson I3200
Head Number 2heads or 4heads
Width A1 size 60cm
Print speed 10-15/㎡/H

Software

include Maintop Software USB
Package Packed in plywood box
Time 0-999sec
Advantage

Unique design Portable&Easy to use

The knowledge on Hoson Mainboard Plus Epson I3200 Printer Head DTG Printer DTG Film Printer:The main parts on the machine is printer head and mainboard,we are using the hoson mainboard+Epson Printer head I3200, this make up is the most steady.The hoson mainboard is keep the memory on itself ,and others are on the computer that is no steady. Also the Consumables is also important, let me introduce below:


About the ink:

The raw resin we use is Mitsui resin

There are two kinds of Mitsui resins in Japan (MUTSUI): 1. The ones produced in Japan are more expensive, 2. The ones produced in Thailand are cheaper, but the quality is not as good as those produced in Japan.

Resin content: more than 20%. If the resin content is not enough, it will affect color fastness, abrasion resistance, friction and tensile strength

The ink will be layered after being put for a long time, with water and color paste on the top and resin on the bottom. So shake up the ink before use

PET film:


There are three kinds of PET film: water-based film, oil-based film, and 3-in-1 film,

The membrane has four layers:

1. Base course (bottom film)

2. Electrostatic layer: prevent the powder from sticking to the side after shaking

3. Ink absorbing layer: prevent ink from flowing everywhere when it is not dry after printing

4. Release layer: for better tearing after high temperature pressing


Hot melt powder:

(1) Melting range (melting point): 115-130 ℃

(2) Ingredients: TPU (polyurethane)

(3) Washing resistance grade (GB 5 is the best): 40 ℃ water washing grade 4, 60 ℃ water washing grade 4, dry cleaning and drying grade 4

(4) Pressing condition: Time: 8-15 seconds Temperature: 120-165 Pressure: 2-4KG

(5) Anti-static, anti-oil, good elasticity, tensile resistance, strong washing fastness, normal drying without cracking (for washing machine with drying function)

Comparison Chart

DTF compareDTF compare

A3 dtf Printer (3)A3 dtf Printer (2)



1.Manufacturer

Place the order directly to factory ,no have intermediate cost

2.Fast delivery

we can send out the order within 3-5working days after payment confirm,big order after getting bank receipt.

3.Strict QC controlle

quality is the life of our company,we check all the goods before sending,

4.Stable Supply

We have sufficient stock for sublimation materials

5.Professional after sales service

We  will give you very professional service, our sales team will service you in good attitude, no-matter you are a wholes sales or end client.

6.More than 10years experience

we have in heat press and sublimation materials for more than 10years we have many experience in this field ,if you have any questions or problem in this field we can help you to solved.

7.OEM/ODM acceptable

We can do OEM/ODM for you,no have MOQ required.


About payment

We accet TT(to our company bank account not person account),Western Union,Paypal,Escrow

We send the goods to over sea by sea ,by air ,or by Express

-By sea: need at least 20boxes of order,just to seaport

-By express: 0-45kgs that is best choose to send the goods by express and it is door to door delivery.

-By air:45kgs to 100kgs, this way is just to the air port not to your door.


Drop shipment also acceptable, we wont not show our information if we do drop shipment.



Firstly: send us the products list which you want to order(more details more better) also give us CONSIGNEE INFO

Sencondly: We will send you PROFORMA INVOICE with freight and bank details

Thirdly: when you confirm the invoice, pls do the payment and send us the bank receipt and we will start to prepare the order for you

Fourly, when the goods ready we will send out ,after sending out we will giveyou tracking number or BL(for sea shipment)


About the shipping: we can send the goods by air,by sea,and by express,also can send the machines to your shipping agent in china if you have.
For USA,Canada,Euro Market we accept door to door shipment by sea that can save the shipping cost.The process In this way:
The first step from China to Over sea it is sent by sea,
After it arrive in destination port will be sent by express.
For example for one machine(29cm x 38cm(11"x15") sent to USA by sea door to door ,the shipping cost is about 95usd.If you need more quotation please contact us: info@heatpresscn.com
