| Power: | |
|---|---|
| Voltage: | |
| Head Number: | |
| Width : | |
| Speed: | |
| Quantity: | |

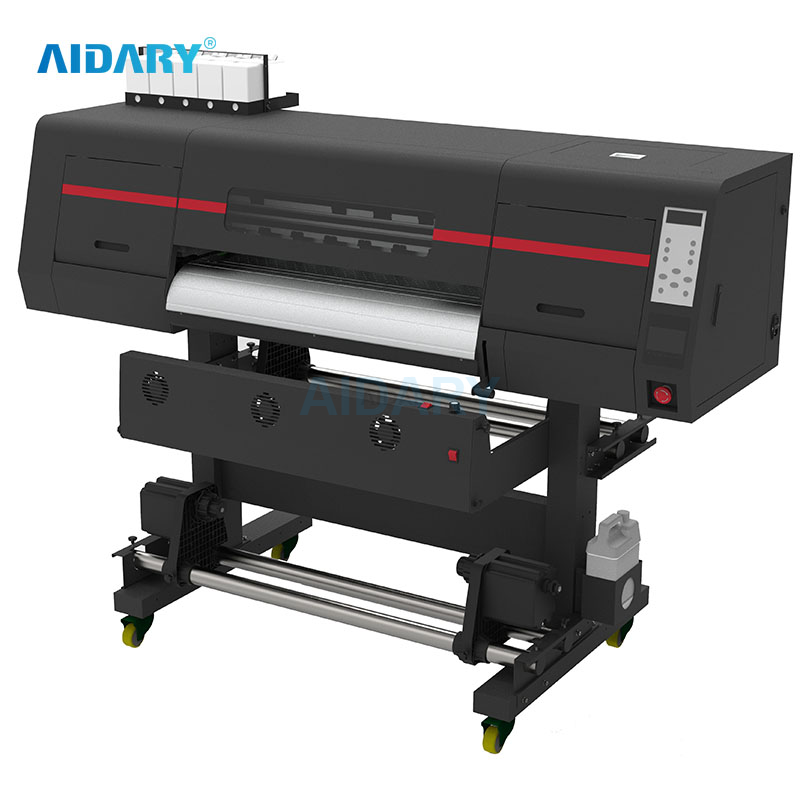

A1-2
AIDARY
84433990
| Keywords | DTF Printer DIY Heat Transfer DTG T Shirt Printing Machine Digital PET Film Printer | |
| Vlotage | 110V/220V | |
| Mainboard | Hoson board | |
| Printer Head | Epson I3200 | |
| Head Number | 2heads or 4heads | |
| Width | A1 size 60cm | |
| Print speed | 10-15/㎡/H | |
Software | include Maintop Software USB | |
| Package | Packed in plywood box | |
| Time | 0-999sec | |
| Advantage | Unique design Portable&Easy to use | |
The knowledge on DTF Printer DIY Heat Transfer DTG T Shirt Printing Machine Digital PET Film Printer:The main parts on the machine is printer head and mainboard,we are using the hoson mainboard+Epson Printer head I3200, this make up is the most steady.The hoson mainboard is keep the memory on itself ,and others are on the computer that is no steady. Also the Consumables is also important, let me introduce below:
About the ink:
The raw resin we use is Mitsui resin
There are two kinds of Mitsui resins in Japan (MUTSUI): 1. The ones produced in Japan are more expensive, 2. The ones produced in Thailand are cheaper, but the quality is not as good as those produced in Japan.
Resin content: more than 20%. If the resin content is not enough, it will affect color fastness, abrasion resistance, friction and tensile strength
The ink will be layered after being put for a long time, with water and color paste on the top and resin on the bottom. So shake up the ink before use
PET film:
There are three kinds of PET film: water-based film, oil-based film, and 3-in-1 film,
The membrane has four layers:
1. Base course (bottom film)
2. Electrostatic layer: prevent the powder from sticking to the side after shaking
3. Ink absorbing layer: prevent ink from flowing everywhere when it is not dry after printing
4. Release layer: for better tearing after high temperature pressing

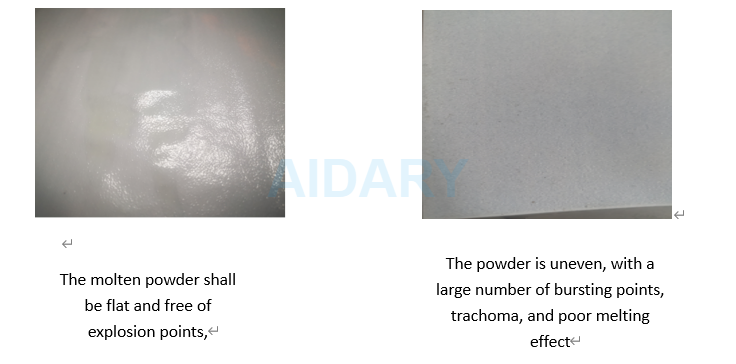

Hot melt powder:
(1) Melting range (melting point): 115-130 ℃
(2) Ingredients: TPU (polyurethane)
(3) Washing resistance grade (GB 5 is the best): 40 ℃ water washing grade 4, 60 ℃ water washing grade 4, dry cleaning and drying grade 4
(4) Pressing condition: Time: 8-15 seconds Temperature: 120-165 Pressure: 2-4KG
(5) Anti-static, anti-oil, good elasticity, tensile resistance, strong washing fastness, normal drying without cracking (for washing machine with drying function)

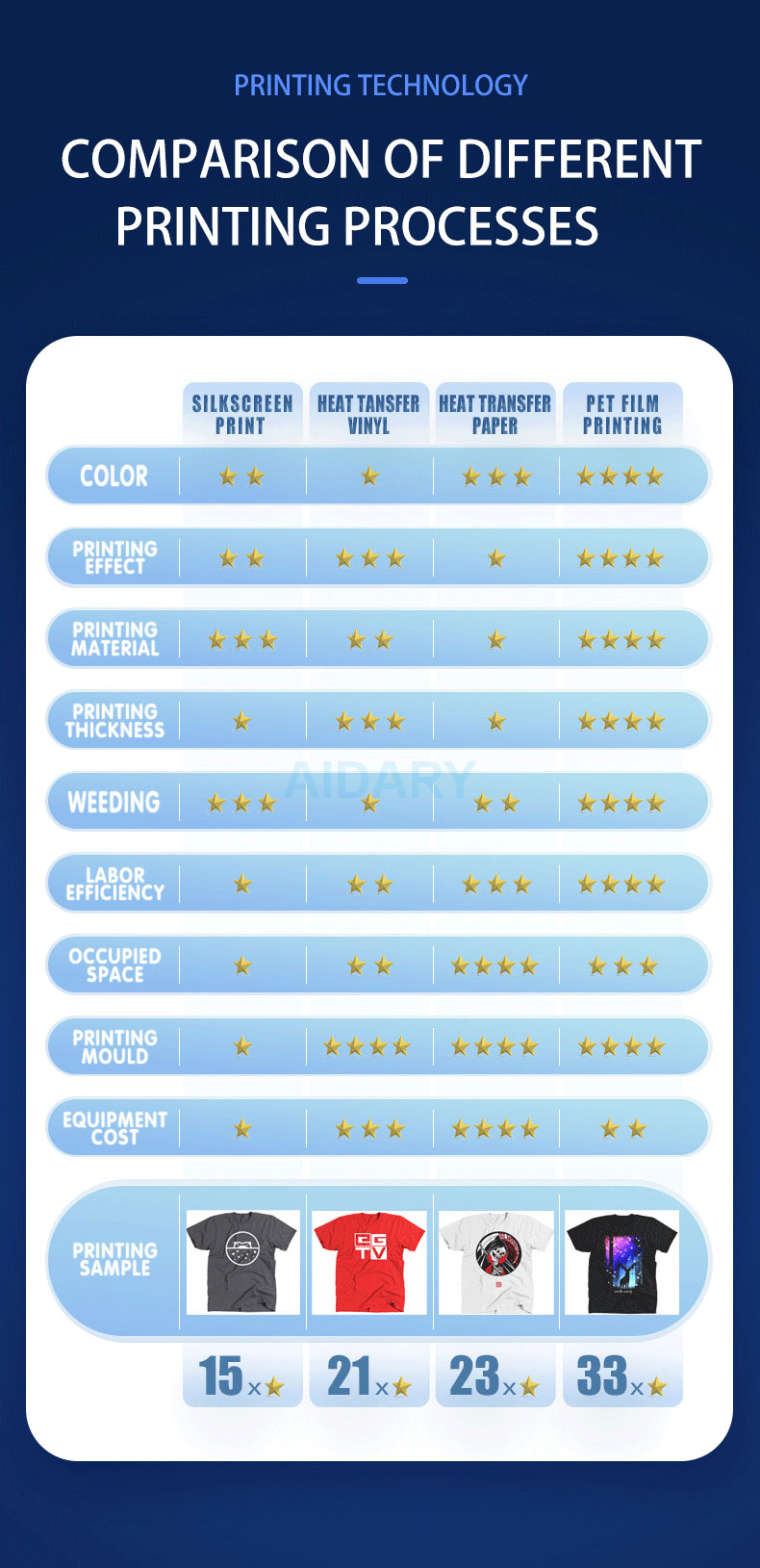

Comparison Chart
